Product Description

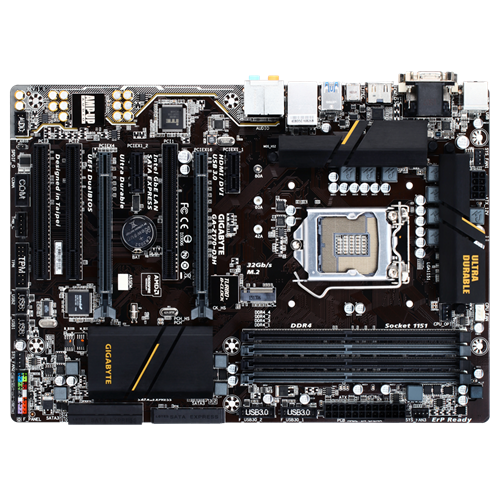

Gigabyte GA-Z170-D3H Motherboard
- Supports 6th Generation Intel Core Processor
- Dual Channel DDR4, 4 DIMMs
- Intel USB 3.0 with USB Type-C - the world's next Universal connector
- 2-Way Graphics with Premium PCIe Lane
- PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe & SATA SSD support)
- 3 SATA Express Connectors for up to 16Gb/s Data Transfer
- 115dB SNR HD Audio with Built-in Rear Audio Amplifier
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- Intel GbE LAN with cFosSpeed Internet Accelerator Software
- APP Center Including EasyTune and Cloud Station Utilities
- GIGABYTE UEFI DualBIOS Technology
Additional Information
| Manufacturer Code | GA-Z170-D3H |
|---|---|
| SKU | 67554 |
| Weight | 1.0000 |
| Featured | No |
| Manufacturer | Gigabyte |
| Special Price | No |
| Chipset | Intel Z170 |
| Processor Support | Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors |
| Memory | 2133 MHz |
| Audio | Realtek ALC1150 codec |
| Form Factor | ATX |
| PCI Slots | 3x PCI, 2x PCIE x1, 1x PCIE x4, 1x PCIE x16 |
| Storage Interface | 1 x M.2 Socket 3 connector, 3 x SATA Express connectors, 6 x SATA 6Gb/s connectors |
| Socket | LGA 1151 |
